CRV-H (Hollow Shaft)

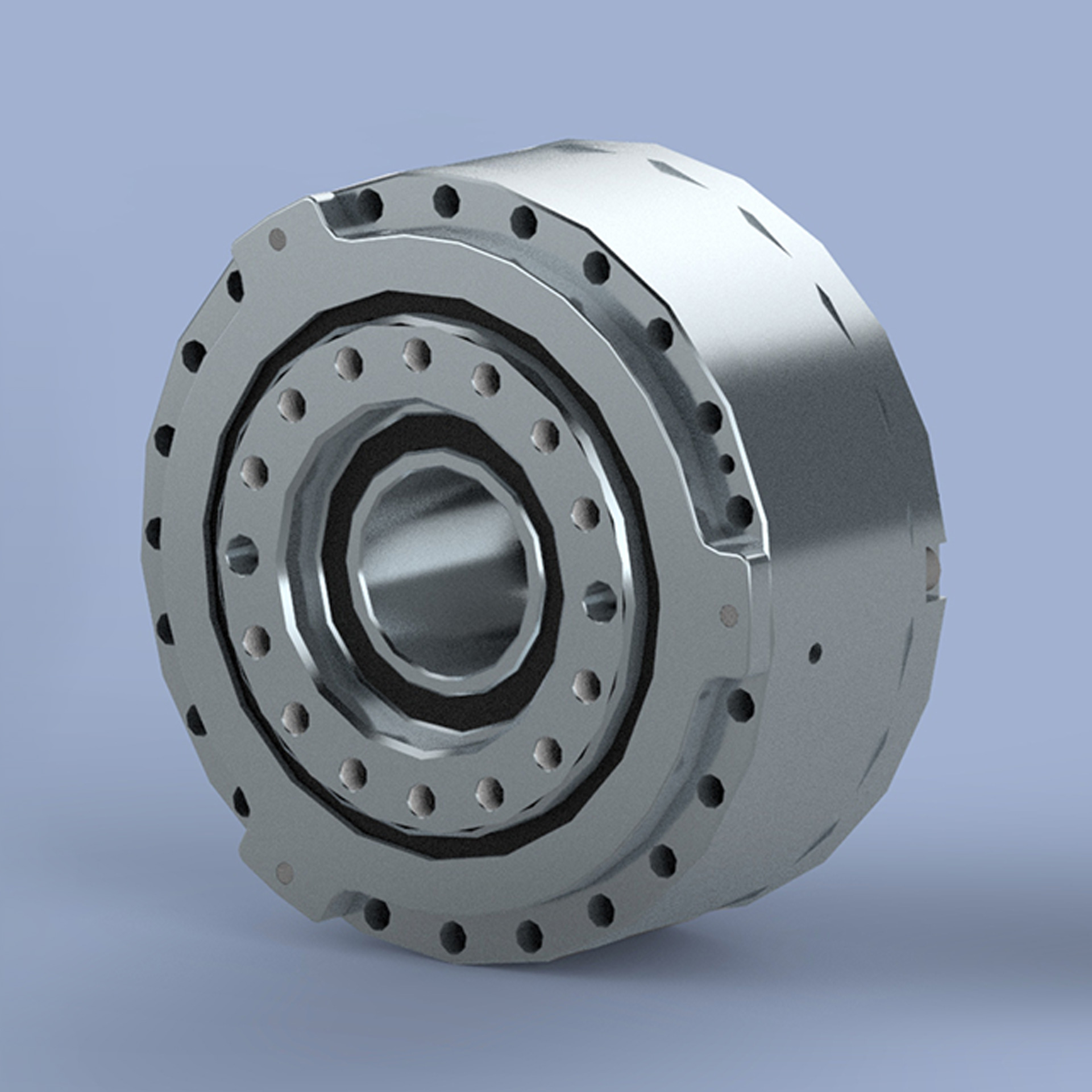

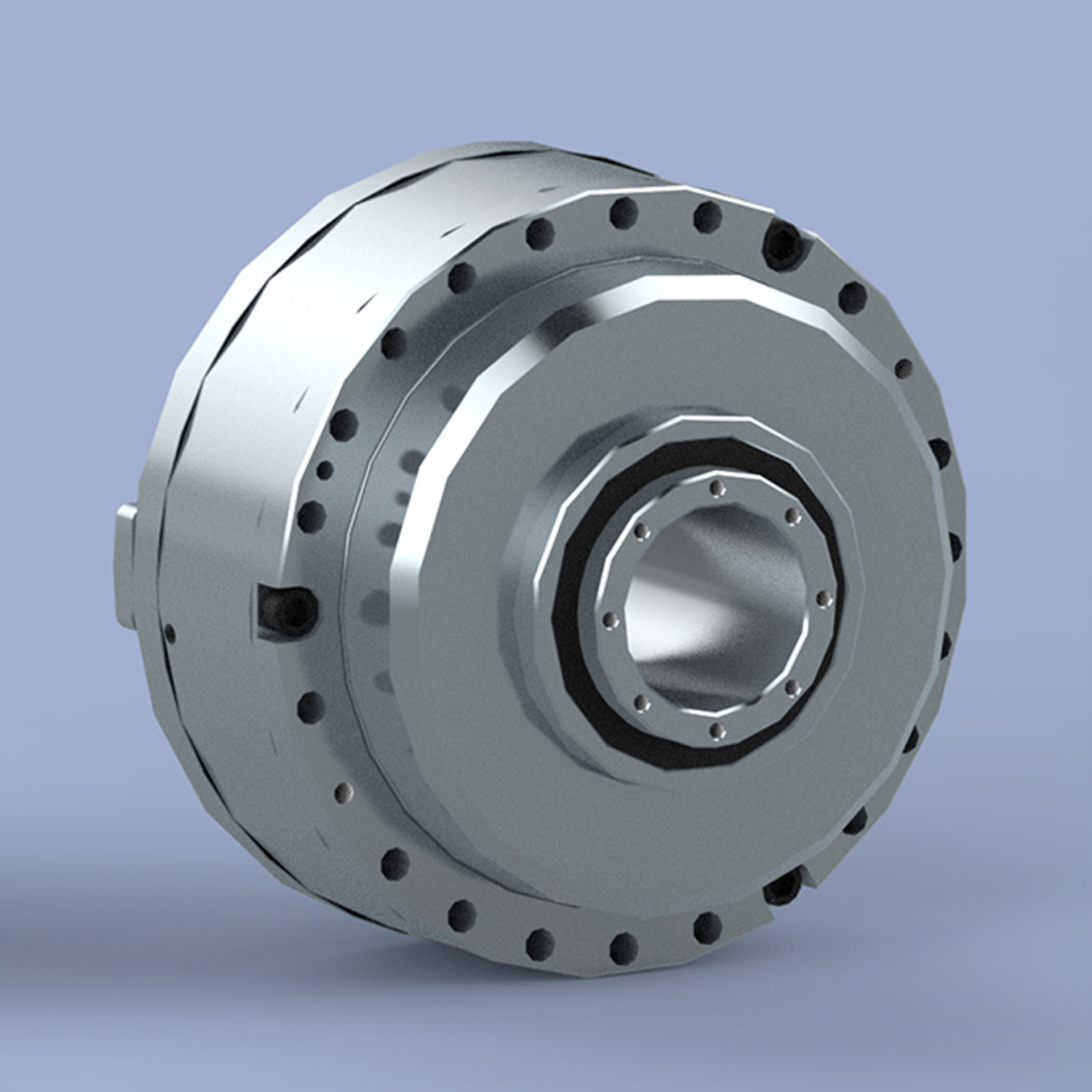

CRV-H high precision reduction gears with through-holes in the shafts, also known as the hollow-shaft version. Cables, tubes with compressed air, drive shafts and so on can be led through the hole in the shaft of the gear.

This series high precision reduction gears comprise an accurate reduction mechanism and high-capacity radial and axial cylindrical bearings. This design of the reduction gears allows the mounting of the load directly on the output flange or case without a need of additional bearings.

Advantages

Hollow shaft construction
Backlash less than 1 arc.min
Lost motion less than 1 arc.min. Internal main bearing
Fully sealed
High moment capacity
High efficiency
Long lifetime
High torsional and tilting stiffness

Download Brochure

MODEL	Reduction ratio	Rated output torque	Max. acceleration / deceleration torque	Maximum permissible torque at emergency / E-stop	Rated Out put speed	allowable out put speed	Lost motion	Hysteresis	Angular transmisi贸n error	Efficiency
	i	T0 [Nm]	TS1 [Nm]	TS2 [Nm]	N0 [rpm]	NS0 [rpm]	[arc min]	[arc min]	[arc sec]	[%]
CRV 17 H	87	165	330	825	15	55	< 1	< 1	70	80%
CRV 46 H	125	455	910	2275	15	50	< 1	< 1	60	80%
CRV 80 H	119	775	1550	3875	15	45	< 1	< 1	60	80%
CRV 125 H	139	1265	2530	6325	15	40	< 1	< 1	50	80%
CRV 160 H	121	1595	3190	7975	15	20	< 1	< 1	50	80%

MODEL

Reduction ratio

Rated output torque

Max. acceleration / deceleration torque

Maximum permissible torque at emergency / E-stop

Rated Out put speed

allowable out put speed

Lost motion

Hysteresis

Angular transmisi贸n error

Efficiency

T0 [Nm]

TS1 [Nm]

TS2 [Nm]

N0 [rpm]

NS0 [rpm]

[arc min]

[arc sec]

[%]

CRV 17 H

165

330

825

< 1

80%

CRV 46 H

125

455

910

2275

< 1

80%

CRV 80 H

119

775

1550

3875

< 1

80%

CRV 125 H

139

1265

2530

6325

< 1

80%

CRV 160 H

121

1595

3190

7975

< 1

80%
