CRV-S

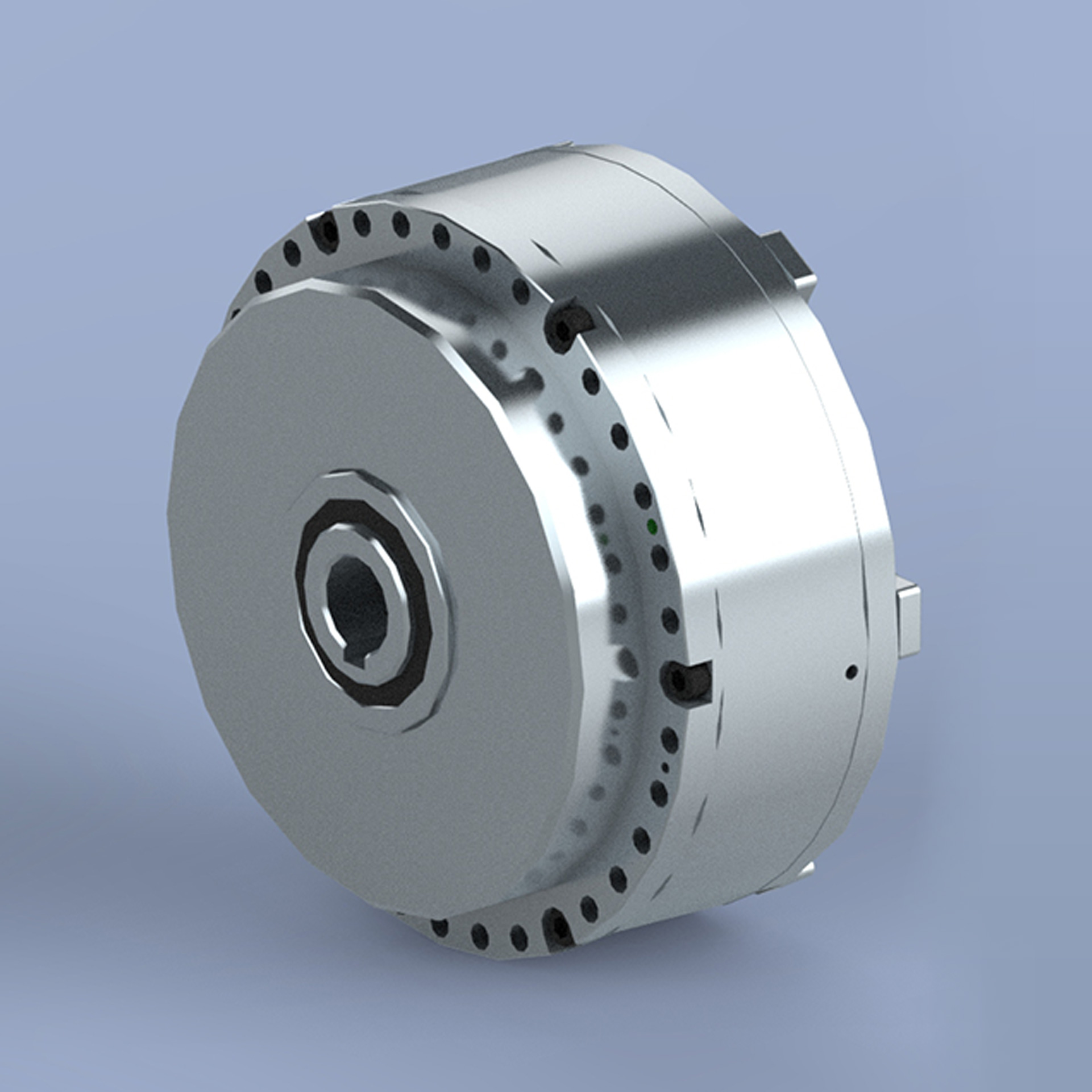

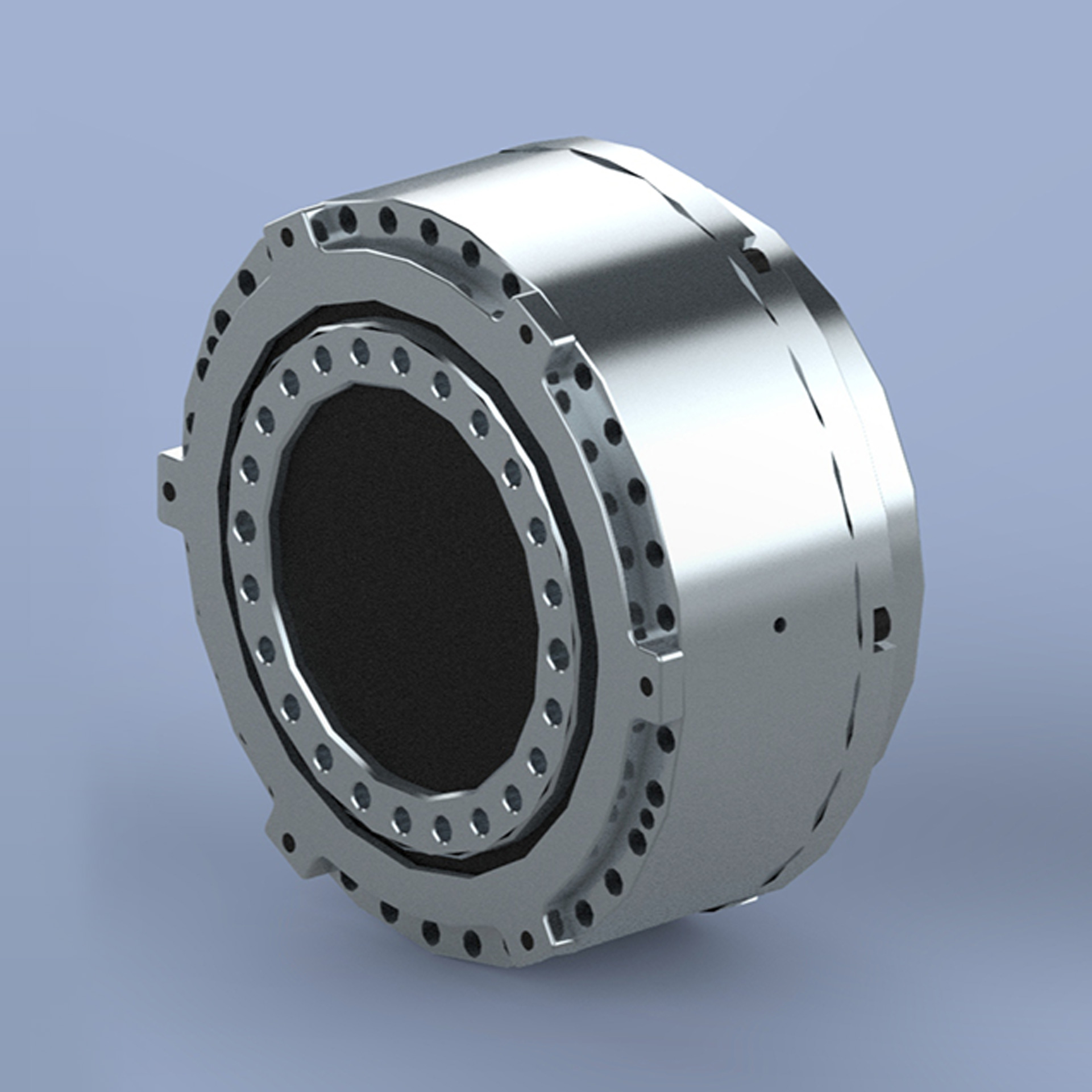

CRV-S high precision reduction gears are based on a unique eccentric reduction mechanism and a special design of the radial and axial output bearing. As a result, they represent High rigid and high accurate power transmission systems. The CRV-S indicates the full integration of a high precision unique eccentric reduction gear with a radial and axial bearing in a single unit. This new transmission concept allows the use of the reduction gears directly in robot joints, rotary tables and wheel gears in various transport systems. The CRV-S is high precision Zero backless reduction gears are designed for applications requiring a high reduction ratio, high kinematic accuracy, low lost motion, high moment capacity and high stiffness of a compact design with limited installation space and low mass.

Advantages

  • High tilting stiffness
  • Low friction
  • High precision output bearing
  • High torque density
  • Reduced lost motion settings
  • High torque overload capacity
Download Brochure
Size Reduction ratio Rated output torque Max. acceleration / deceleration torque Maximum permissible torque at emergency / E-stop Rated Out put speed allowable out put speed Lost motion Hysteresis Angular transmisión error Efficiency
MODEL i T0 [Nm] TS1 [Nm] TS2 [Nm] N0 [rpm] NS0 [rpm] [arc min] [arc min] [arc sec] [%]
CRV 3.5 S 37 35 68 170 15 60 <1 <1 73 80%
51
75
CRV 7.5 S 37 75 148 370 15 60 <1 <1 73 80%
65
75
CRV 8.5 S 43 85 168 420 15 55 <1 <1 70 80%
71
105
CRV 17 S 43 170 350 875 15 55 <1 <1 70 80%
87
125
CRV 46 S 53 460 1162 2324 15 50 <1 <1 60 80%
95
125
CRV 80 S 51 780 1962 3924 15 45 <1 <1 60 80%
67
119
133
CRV 125 S 61 1270 3185 6370 15 40 <1 <1 50 80%
79
139
CRV 160 S 67 1600 4025 8050 15 20 <1 <1 50 80%
101
121
CRV 380 S 75 3750 9325 18650 15 15 <1 <1 50 80%
109
153
CRV 500 S 77 4950 12300 24600 15 12 <1 <1 50 80%
123
153
CRV 700 S 97 7000 17500 35000 15 9 <1 <1 50 80%
135
181
