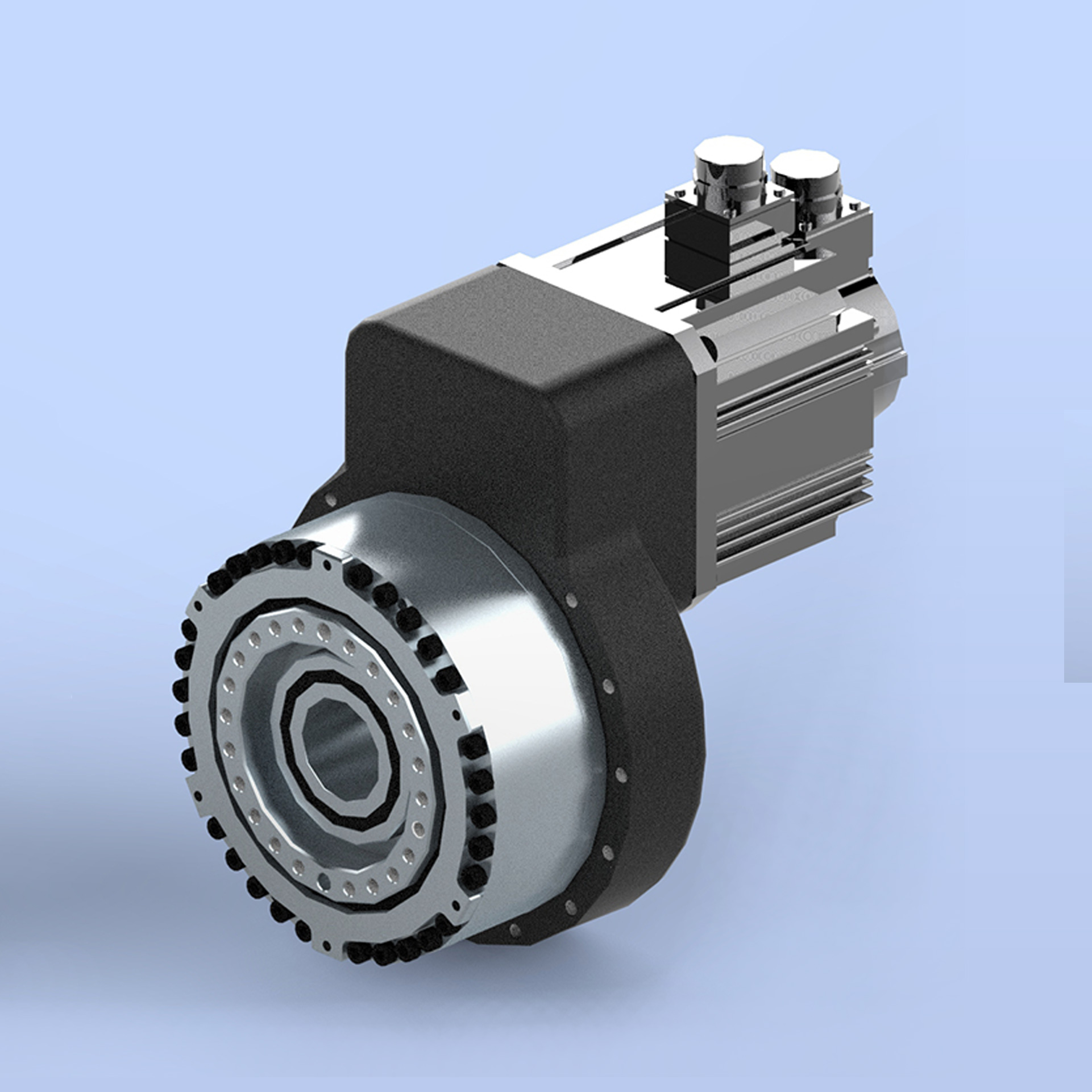

CRV-SD-H

CRV-SD-H is a compact actuator directly amounted servomotor, which is succeeded to features of Precision Reduction Gear CRV-SD, "High accuracy", "High rigidity“ and "High reliability". The design for CRV-SD-H series allows to reduce consideration of design for gear and motor, and assembly in customers. This product family to meet the most demanding customer requirements in all industries.

Advantages

  • Hollow shaft construction
  • With Servomotor
  • Backlash less than 1 arc. min.
  • Lost motion less than 1 arc. min.
  • Internal main bearing
  • Fully Sealed grease
Download Brochure
MODEL Reduction ratio Rated output torque Max. acceleration / deceleration torque Maximum permissible torque at emergency / E-stop Rated Out put speed allowable out put speed Lost motion Hysteresis Angular transmisión error Efficiency
i T0 [Nm] TS1 [Nm] TS2 [Nm] N0 [rpm] NS0 [rpm] [arc min] [arc min] [arc sec] [%]
CRVSD 17 H 87 165 330 825 15 55 < 1 < 1 70 80%
CRVSD 46 H 125 455 910 2275 15 50 < 1 < 1 60 80%
CRVSD 80 H 119 775 1550 3875 15 45 < 1 < 1 60 80%
CRVSD 125 H 139 1265 2530 6325 15 40 < 1 < 1 50 80%
CRVSD 160 H 121 1595 3190 7975 15 20 < 1 < 1 50 80%
